Die Transfer Trolley

Die transfer carts for heavy duty die handling, can be designed into rail and steerable, capacity of 2-500 tons.

Model: BWP
Load capacity: 2t-500t Optional
Dimension: Can be customized
Power supply optional: Battery powered, cable reel powered, cable drum powered, busbar powered, rail powered, Diesel
Wheels optional: Rubber wheel, polyurethane, mecanum wheel
Motors optional: PMAC, AC motors
Certificate: CE. SGS, ISO, SASO
Warranty: 2 years
Delivery time: 30 days-40 days

Call Center: +8619337383023
Share us:
Description

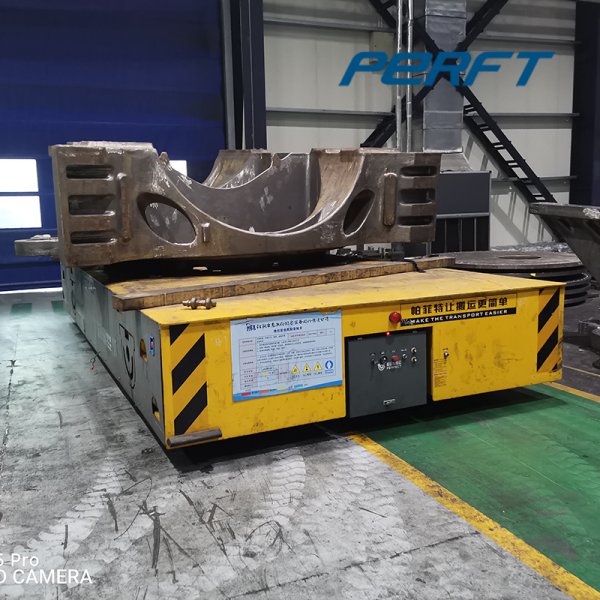

What is Die Transfer Trolley



PERFECT’s die transfer cart is safely and accurately used in the transport and change of dies/molds from 5 tons to 500 tons on rail or on the cement floor or steel plate ground. Molds of different sizes can be transported via customized loading platforms, providing a flexible material handling solution for most industries.



At PERFECT, you can get two different types of die transfer trolleys: die transfer cart on rail and trackless transfer cart for die handling. To meet more unique needs, we can custom AGV, RGV, lifting table, battery operated transfer cart for your die/mold handling.



Key Feature of Heavy Duty Die Transfer Trolley



  1. Capacity 2t up to 500t
  2. Table size can be customized
  3. Steel plate welded frame
  4. 4. Power supply optional
  5. Running speed: 0-20m/min
  6. Can be used in indoor or environmental
  7. Control system: Button control and remote control; Or PLC
  8. Customized function: Hydraulic lift, robot arms, weighing, ultra-low table, titling, climbing, ferry, etc.



Parameters of  Trackless Transfer Trolley for Die Handling



Model BWP-5T BWP-10T BWP-15T BWP-20T BWP-30T BWP-30T BWP-50T
Impacted rated load (T) 7.5 15 22.5 30 45 60 75
Structure of frame Steel plates welded, beam structure
Thickness of steel plate 8 10 12 14 14 16 16
Cart weight(T) 4.3 5.3 6.6 7.9 8.8 10 10.5
Max wheel load(T) 2.8 4.6 4.3 5.6 7.7 10 12
Table size (mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
Height of the whole cart(mm) 450 530 600 600 650 700 700
Ground Clearance (mm) 50 50 50 50 50 50 50
Wheels base (mm) 1500 1500 1700 1700 1700 1800 1800
Axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
Turning type Turning while driving with no stop
Battery maintaince Free of maintainance
Radar control 3-0.3m Automatic stop for obstacles
Cart color Yellow, grey and warning sign
Warning system Sound and light
Other functions Turning light, night light and power display



Which Industry Needs Our Die Transfer Trolley



Mold transfer carts are commonly used in a variety of industries that involve moving heavy molds or dies within a manufacturing facility, include:



  • Automotive manufacturing: Our mold transfer carts transport large and heavy molds used in the stamping process for body panels, chassis components and other parts.
  • Metal Stamping: They use our mold transfer carts to move molds between presses and storage areas.
  • Heavy machinery manufacturing: Mold transfer carts are used to transport molds and dies used in the production of various parts.
  • Shipbuilding: Shipyards use mold transfer carts to transport large molds and tooling used to manufacture ship components, including hull sections, deck panels and bulkheads.
  • Railway: Mold transfer cars are used to move molds and tools used in the production of railway cars, locomotives and other railway components.

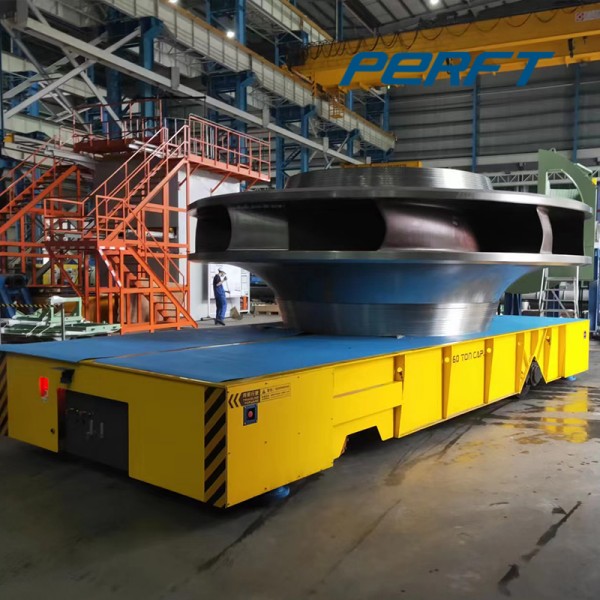

Case study for Die Transfer Cart 40 Ton Video
