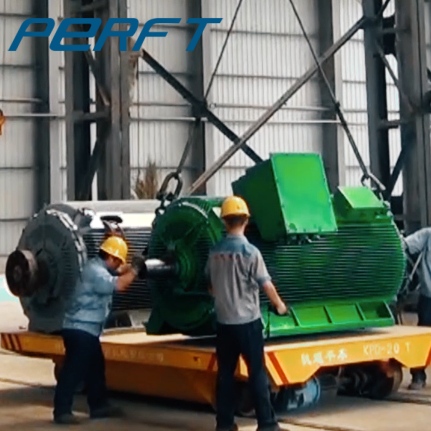

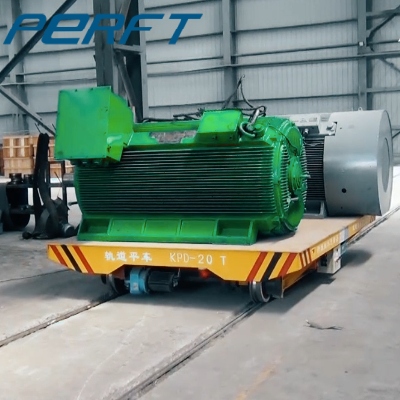

Heavy duty customized die transfer trolley 20t boasts a robust design tailored to meet special dimensions and material handling requirements. With state-of-the-art control systems, safety features, and operability options, our mold transfer trolleys ensure workers’ and equipment safety. Contact us to choose a power source that matches your facility’s infrastructure and experiences the durability of a structure built to withstand harsh working environments.
Product Category
Description
Die transfer trolley, also known as die handling trolley or mold transfer cart, is an industrial material handling equipment designed to move and transport heavy molds and dies within manufacturing. These trolleys are commonly used in industries such as metalworking, automotive, and plastics, where large, heavy molds and dies need to be moved between different workstations and storage areas.
Main Feature of Die Transfer Trolley
- Customized capacity 2t up to 1.500t
- Table Size Can be customized on request
- Optional running method: Rails or Trackless
- Rail gauge can be customized on request
- Optional power supply: Battery powered, cable powered, low voltage rail powered, busbar powered
- Robust frame: Box girder structure cart frame
- Anti-explosion, anti-high temperature, anti-water, anti-dust, etc
- Customized service: lifting, roller, weighing, turntable, titling, climbing, ferry, etc
- Optional Control System (Operation handle / Button Control/ Remote Control / PLC/ Cabin)
- Safety System: Warning light, Radar detector, Sound acoustic devices, E-stop, Deadman stop. Remote controller, Buffer. etc
- 2 years warranty
- After-sale service provided, engineer available overseas.
Case Video of Die Transfer Trolley 20 Ton
Technical Parameters of Die Transfer Cart for Sale
|
Model |
BDG-5t | BDG-10t | BDG-20t | BDG-50t | BDG-100t |
BDG-150t |
|
| Rated Load (t) |
5 |
10 | 20 | 50 | 100 |
150 |
|
| Table Size (mm) |
Length |
3500 |
3600 | 4000 | 5500 | 6500 |
10000 |
|
Width |
2000 |
2000 | 2200 | 2500 | 2800 |
3000 |
|
|
Height |
450 | 500 | 550 | 650 | 850 |
1200 |
|
| Wheel Base (mm) |
2500 |
2600 | 2800 | 4200 | 4900 |
7000 |
|
| Rail Inner Gauge (mm) |
1435 |
1435 | 1435 | 1435 | 2000 |
2000 |
|
| Wheel Diameter (mm) |
Ф270 |
Ф300 | Ф350 | Ф500 | Ф600 |
Ф600 |
|
| Wheel Quantity |
4 |
4 | 4 | 4 | 4 |
8 |
|
| Ground Clearance (mm) |
50 |
50 | 50 | 50 | 75 |
75 |
|
| Running Speed (m/min) |
0-25 |
0-25 | 0-20 | 0-20 | 0-20 |
0-18 |
|
| Motor Power (Kw) |
0.8 |
1.5 | 2.5 | 5.5 | 11 |
15 |
|
| Transformer Power(KVA) |
3 |
5 | 6.8 | 10 | 30 |
30 |
|
| Transformer Quantity |
1 |
1 | 1 | 1 | 1 |
1 |
|
| Running Distance (m) |
70 |
70 | 70 | 50 | 50 |
50 |
|
| Max Wheel Load( kn) |
25.8 |
42.6 | 77.7 | 174 | 343.8 |
265.2 |
|
| Recommended Rail Model |
P18 |
P18 | P24 | P43 | QU100 |
QU100 |
|
You can get optimal guiding methods on your layout and material handling solutions from PERFECT engineering team, You can also receive a sustainable and environmentally heavy load transfer trolley at factory price. Contact us today for your heavy load transfer trolley.
8 Ton Mold Transfer Trolley Video
Send Your Inquiry
We not only provide a good product, but also provide high quality service. If you are interested in our products,
you can contact us in the following ways.
you can contact us in the following ways.
