Rail Transfer Trolley Transport Train Carriage

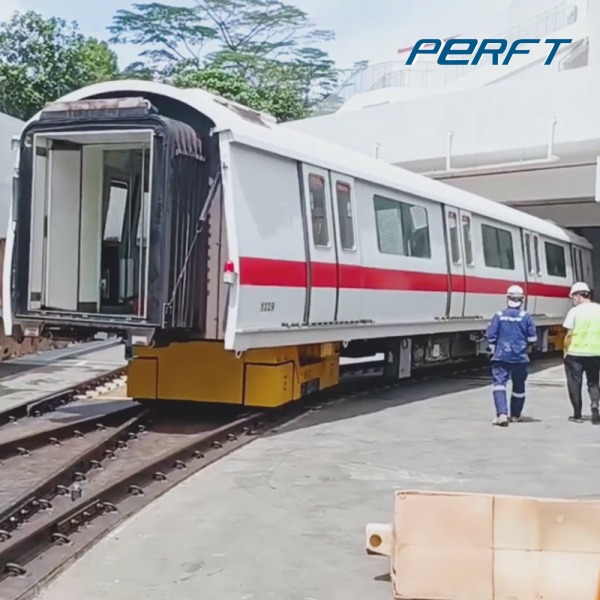

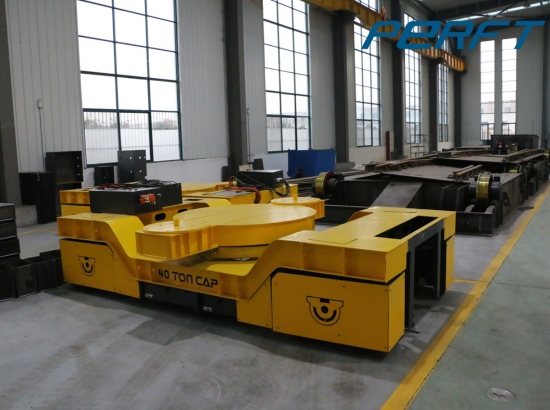

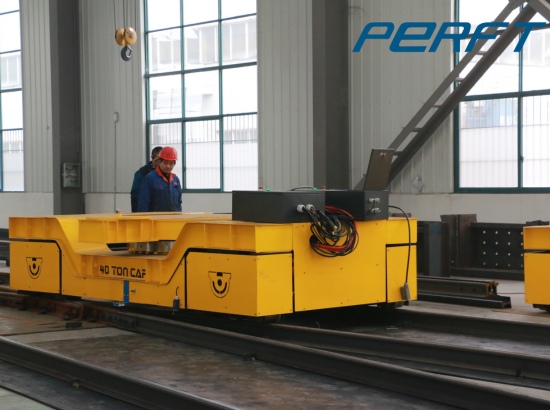

40 ton rail transfer trolley for train carriage, is used for turning and positioning railway locomotives, comprehensively solve the technical problem of changing the operating direction of transfer trolley.

Model: BXC
Load capacity: 40ton
Power supply: Battery power
Continuous working hours: 6-8 hours
Running speed: 1-20m/min adjustable
OEM: Support
Warranty: 2 years

Call Center: +8619337383023
Share us:
Description

What is Rail Transfer Trolley



Rail transfer trolley, also known as rail transfer cart, rail cart, rail transporter, or rail trailer, is material handling equipment running the rail or track used to move heavy loads within industrial environments.

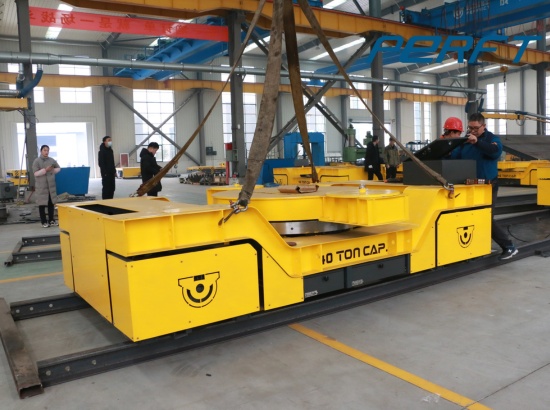

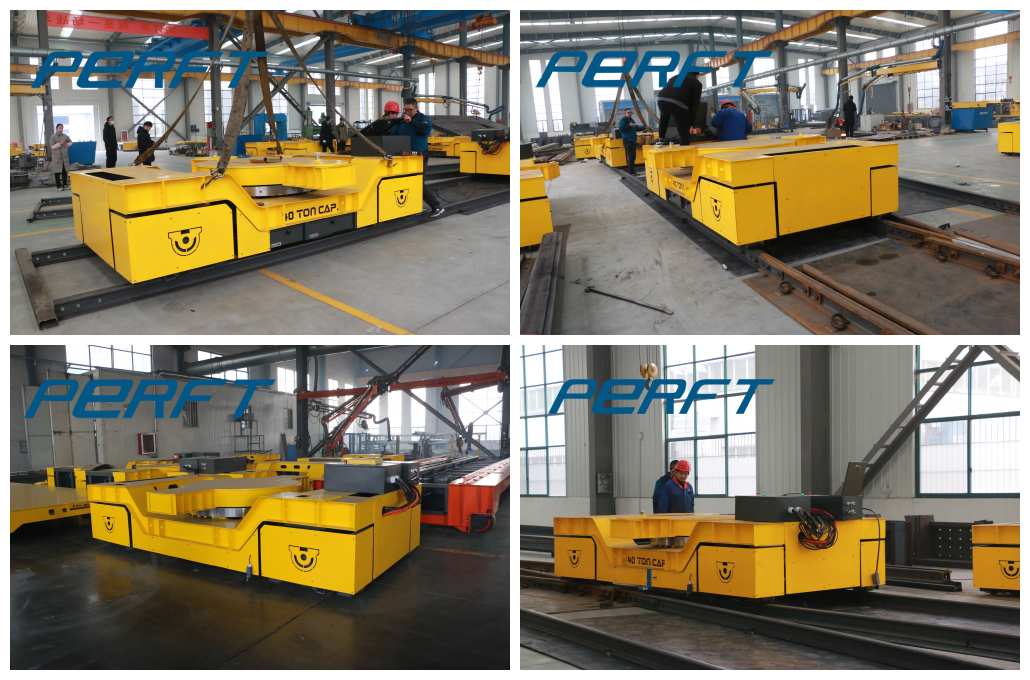

Rail transfer trolley show
Rail transfer trolley show



Typically, these trolleys have wheels or rollers that run along a fixed rail track embedded in the floor or ground (can be exchanged between multiple tracks). At Perfect, Rail transfer trolleys can be powered by various means, such as battery powered, cable reels powered, cable drum powered, busbar powered, rail powered, diesel or manually operated.



Rail transport carts are commonly used in manufacturing plants, warehouses, shipyards and other industrial facilities to transport materials, equipment and finished goods over short to medium distances. They are available in a range of sizes, capacities and configurations to suit different applications and load requirements. These trolleys offer advantages over traditional material handling methods such as forklifts and manual carts, including increased safety, efficiency and reduced manual handling.



Main Future of Battery Power Rail Transfer Trolley



  • Load Capacity from 2t up to 1500t
  • Table size can be customized
  • Box girder structure cart frame
  • Battery can be recharged 1200-1500 times and has a service life of 3-4 years under normal use.
  • Control System: Button control and wireless remote control, or PLC (Customized)
  • Safety features: Emergency stop button, alarm lamp, sound acoustic devices, anti-collision system, etc.
  • Customized function: Robot arm, lifting, hydraulic leg, weighting, titling, scanning radar, climbing, ferry, rollover, roller, etc.
  • Incidental Tooling: V frame, roller, rubber plate, Aluminum pattern plate, railing, refractories, damped buffer, operating table, wooden table, etc
  • Stable structure and high strength
  • Easy to operate, safe and efficient



Parameters of Rail Transfer Trolley



Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100



Product Structure of Battery Power Transfer Cart



Battery power transfer cart is mainly composed of a reducer, AC motor, wheels, electrical box, frame, alarm lamp, charging port, battery pack, etc.

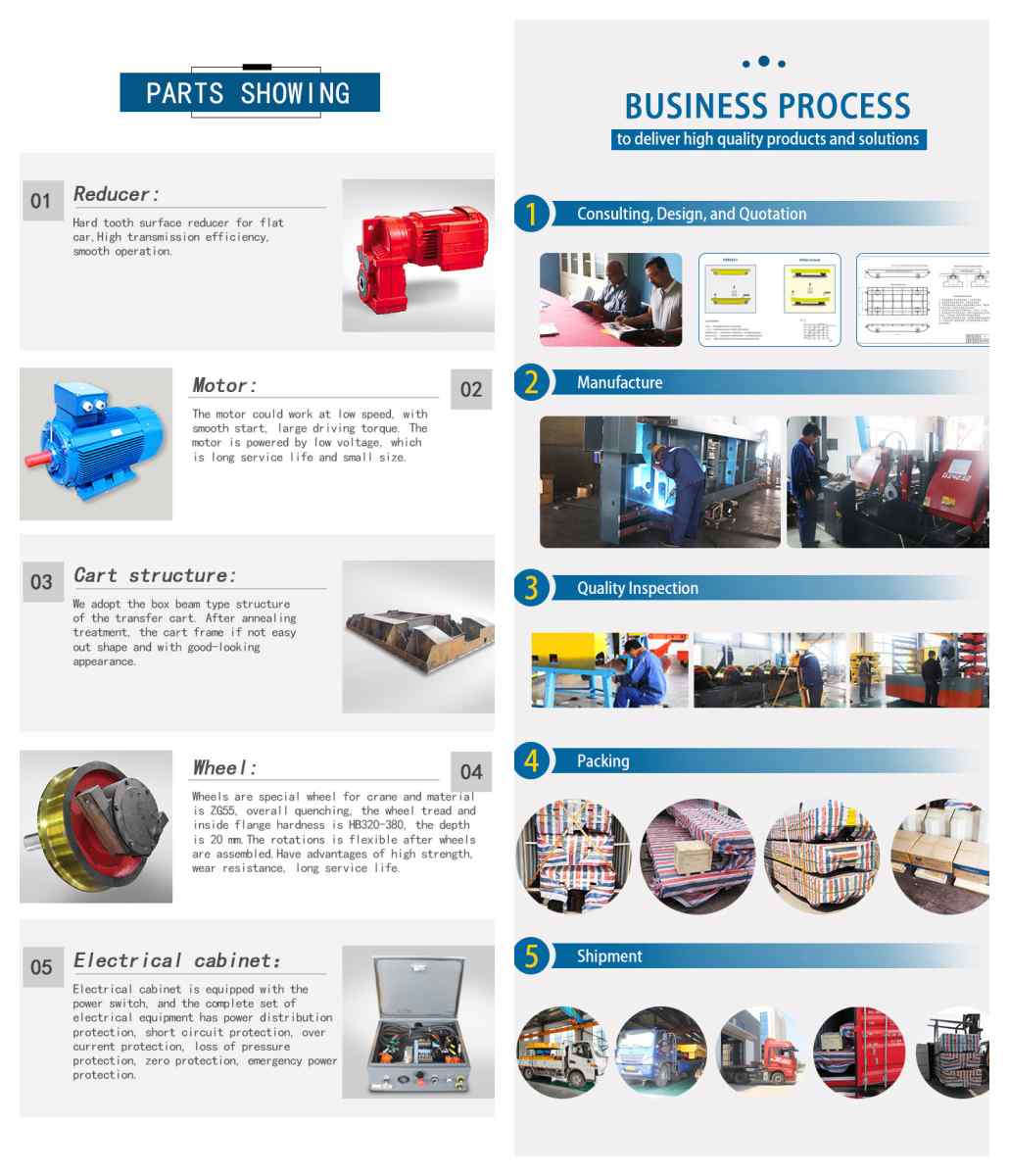

Transfer trolley part showing
Transfer trolley part showing



Processing of Rail Transfer Trolley



Processing of Rail Transfer Trolley
Processing of Rail Transfer Trolley







Our Factory



Perfect has been a manufacturer of branded rail transfer trolleys for more than ten years. It can not only provide you with various types of battery rail transfer cars but also design suitable handling solutions for you for free, allowing you to get a transfer cart for high configurations at a factory price.

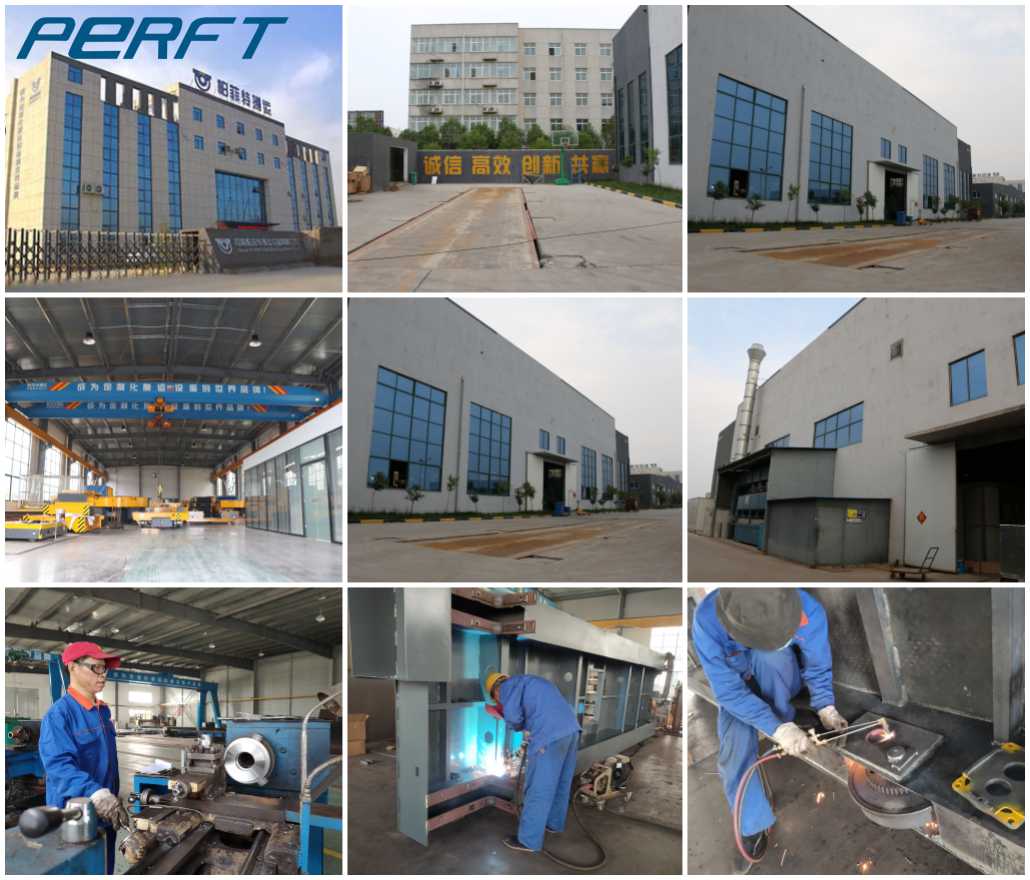

Transfer Trolley Factory
Transfer Trolley Factory



Our service

Our service for transfer trolley
Our service for transfer trolley



Pre-Sales Service

  • Provide suitable design according to the working conditions.
  • Professional technology.
  • View our Factory.



After-Sales Service

  • Training how to install the machine, training how to use the machine.
  • Engineers available to service machinery overseas.
