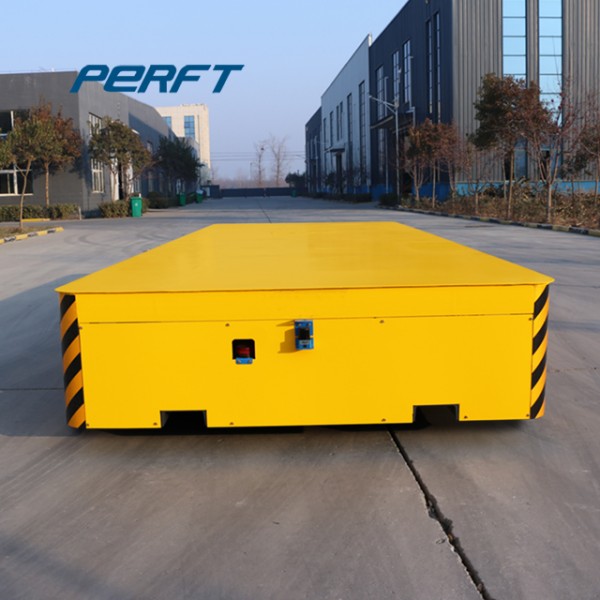

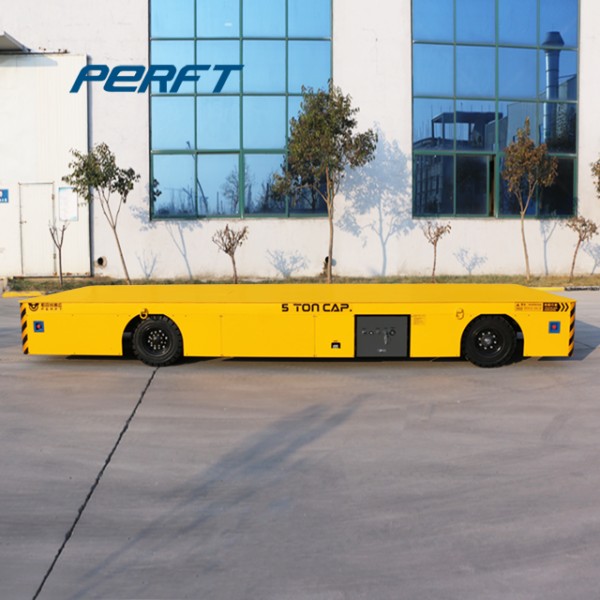

Mecanum Wheel Steerable Transfer Trolley

Steerable transfer trolleys with mecanum wheels offer flexibility, versatility, and safety in material handling. With omnidirectional movement capability, precise control, and adaptability to various industries, they are transporting heavy loads across factory floors, warehouses, and assembly lines.

Load capacity: 2t-500t
Dimension can be customized
Certificate: CE. SIO SGS SASO
Warranty: 2 years
Delivery time: Almost 40 working days
Custom service: Light customization, sample processing, graphic processing

Call Center: +8619337383023
Share us:
Description

What is Mecanum Wheel Steerable Transfer Trolley

Steerable transfer trolley with mecanum wheel is one of our trackless transfer trolley, These trolleys, also known as omnidirectional transfer trolley, The trolley can move in any direction without the need for intricate steering mechanisms thanks to the special design of the mecanum wheels. Every wheel has a set of rollers angled relative to the wheel axis, which enables smooth forward, backward, sideways, and even rotating movement for the trolley. The ability to move in all directions greatly increases productivity by cutting down on the time and effort needed to maneuver around tight turns and crowded areas.



At PERFECT, These trolleys are ideal for a multitude of applications because they can be tailored to accept different load sizes, shapes, and weights. These trolleys provide a versatile solution that can be tailored to meet the unique requirements of various industries, whether they are being used to transport heavy machinery components, finished goods, or raw materials. These trolley can maneuver around facilities with limited access to rail trolley, forklift and overhead crane, providing fast, safe and smooth movement of materials or products in any direction within a manufacturing facility.





Five Advantages of Using Steerable Transfer Trolleys with Mecanum Wheels



  • Flexibility: Mecanum wheels facilitate movement in all directions, making it easier to navigate around corners and confined spaces.
  • Versatility: Steerable trolleys can adapt to various loads (2t-500t), sizes and shapes.
  • Safety: Precise control reduces the possibility of mishaps and harm to products and facilities, fostering a more secure working atmosphere.
  • Cost-effectiveness: It can minimize downtime ultimately improving profitability.
  • Increased productivity: Steerable transfer trolleys boost overall productivity, helping businesses stay competitive.



Feature of Mecanum Wheel Steerable Transfer Trolley



  • Mecanum wheel for omnidirectional steering
  • Omnidirectional steering –90°–Diagonal–360°steering
  • Load capacity from 2ton up to 500ton
  • Table size can be customized
  • Power supply: Battery (free of maintenance )
  • Low battery alarm and smart battery charger
  • Additional function: Scissor lifting, robotic arm, climbing, v shape, u shape, anti-explosion, heat-proof function, tilting, roller, weighing, radar scanning, etc.
  • Safety feature: LED flashing lights, Emergency stop button, alarm light, anti-collision system, guardrails, etc
  • Control system: button control and wireless remote control, or PLC



Technical Parameters of Mecanum Wheel Steerable Transfer Trolley



Model BWP-5T BWP-10T BWP-15T BWP-20T BWP-30T BWP-30T BWP-50T
Impacted rated load (T) 7.5 15 22.5 30 45 60 75
Structure of frame Steel plates welded, beam structure
Thickness of steel plate 8 10 12 14 14 16 16
Cart weight(T) 4.3 5.3 6.6 7.9 8.8 10 10.5
Max wheel load(T) 2.8 4.6 4.3 5.6 7.7 10 12
Table size (mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
Height of the whole cart(mm) 450 530 600 600 650 700 700
Ground Clearance (mm) 50 50 50 50 50 50 50
Wheels base (mm) 1500 1500 1700 1700 1700 1800 1800
Axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
Turning type Turning while driving with no stop
Battery maintaince Free of maintainance
Radar control 3-0.3m Automatic stop for obstacles
