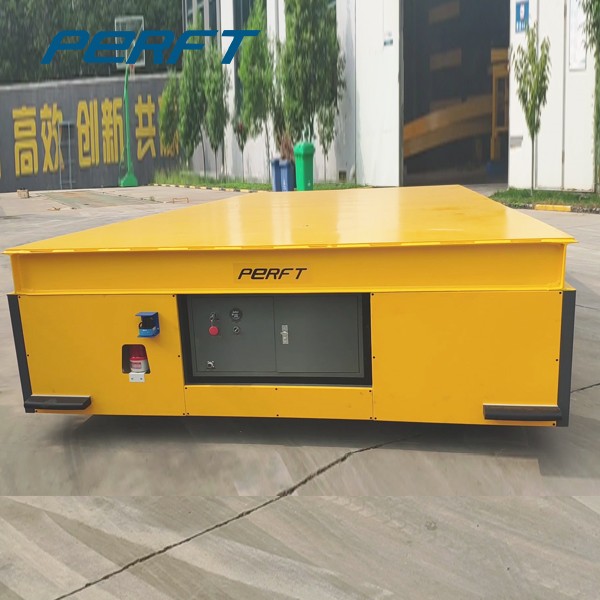

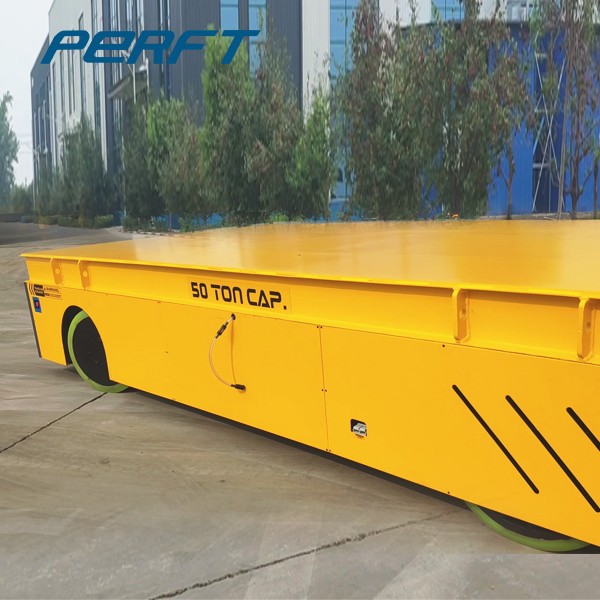

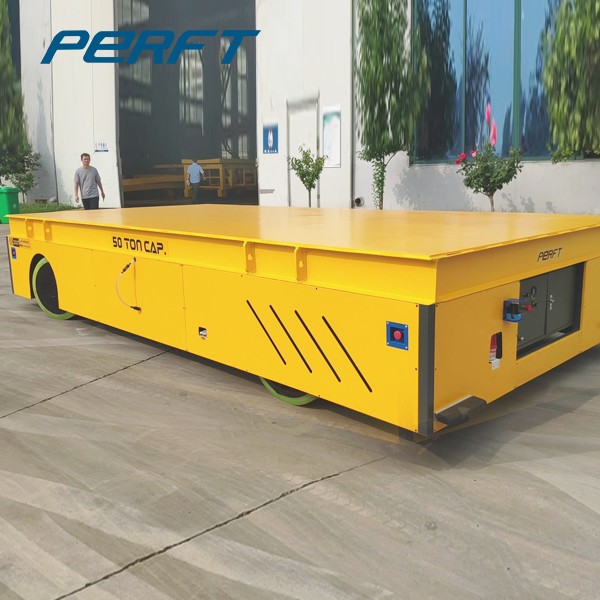

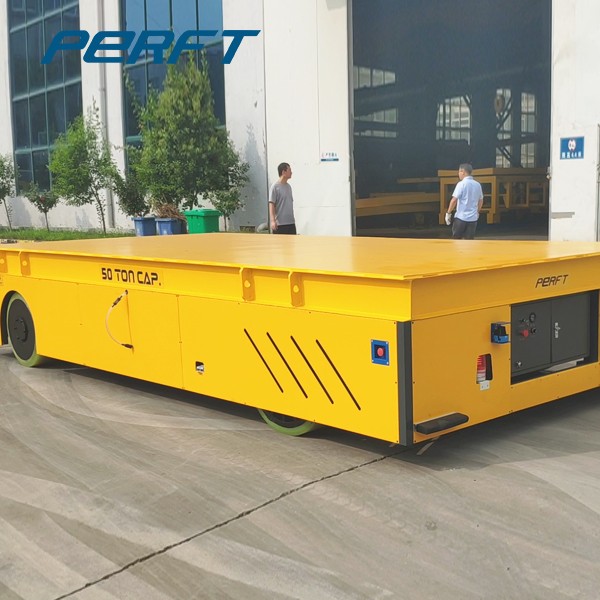

50 Ton Heavy Duty Platform Cart

Polyurethane rubber wheel platform cart is a versatile and efficient solution for material transport. Its trackless and polyurethane rubber wheel design allows it to travel on various surfaces.

Model: BWP
Load Capacity: 2t-500t can be customized
Dimension: Can be customized
Platform cart design: Trackless
Power supply: Battery power
Running speed: 1-20m/min
Certificate: CE. SGS, ISO, SASO
Warranty: 24 months
Delivery time: 40 days-50 days

Call Center: +8619337383023
Share us:
Description

Heavy duty trackless platform cart is a robust and versatile solution for efficient material handling, and transporting heavy loads without requiring tracks, which enables it to traverse a variety of surfaces. It is a dependable asset for companies looking for dependable and efficient material transport solutions. At Perfect, you can receive custom service for platform carts, such as polyurethane rubber wheel design, mecanum wheel design, rubber wheel design, additional function devices, etc. Handling materials: Steel coils, pipe handling, aluminum coils, galvanized coils, transformers, cable reels, castings, die or mold, motors, containers, carriages, pressure vessels, etc.



Features for Heavy Duty Trackless Platform Cart



  1. Capacity load customized from 2t up to 500t
  2. Dimension can be customized
  3. Robust Sturdy Frame
  4. Battery powered
  5. Motor Optional (DC motor with brush and DC motor brushless)
  6. Optional smart charge and low battery warning
  7. Can be used in indoor or outdoor environments
  8. Omnidirectional: Normal, 90°, diagonal, 360°
  9. Optional wheel types: Mecanum wheel, polyurethane solid wheel, vulkollan wheel, rubber wheel, super elastic or pneumatic wheel
  10. Customized function: Lifting table, vertical and horizontal moving, robot arms, weighing, ultra-low table, titling, climbing, ferry, etc.
  11. Incidental tools: V frame, U frame, roller, rubber plate, aluminum pattern plate, railing, refractories, damped buffer, operating table, wooden table.
  12. Control System: Button control and wireless remote control, or PLC system
  13. Safety features: Turning light, night light, E-stop, dead man stop, buffer, alarm light, etc.

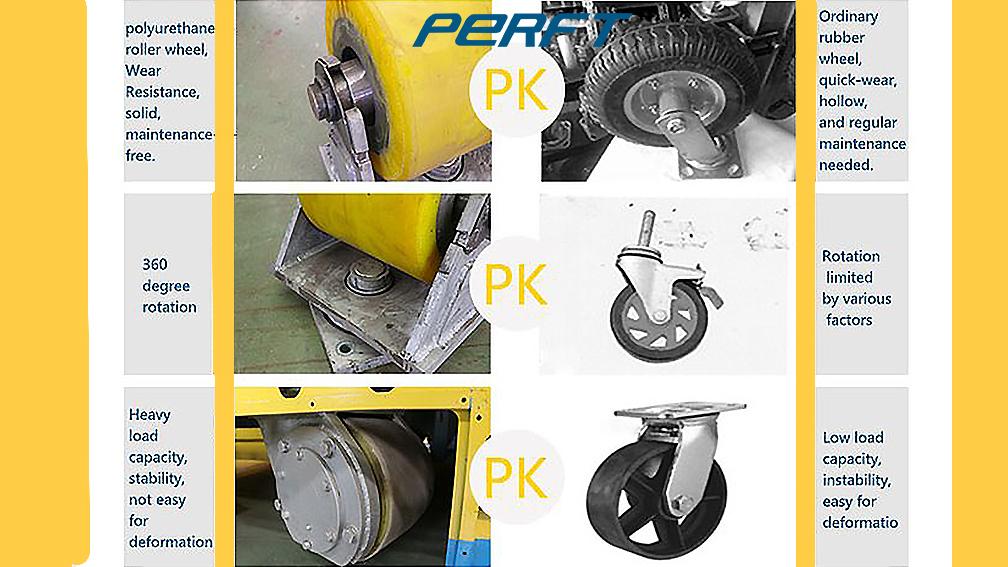

Polyurethane Wheel VS Ordinary Rubber Wheel



Polyurethane Wheel VS Ordinary Rubber Wheel
Polyurethane Wheel VS Ordinary Rubber Wheel



The elastomer of polyurethane wheels has good properties such as wear resistance, chemical corrosion resistance, high strength, high elasticity, low-pressure resistance, strong shock absorption, tear resistance, radiation resistance, high load-bearing and shock absorption, and buffering. Polyurethane wheels have excellent sound-absorbing properties. The wheels produce no noise during movement and can achieve a silent effect. These characteristics of polyurethane wheels make them very suitable as caster materials.



Basic characteristics of rubber wheels: When rubber products are molded, they are pressed under high pressure, and the cohesion of the elastomer cannot be eliminated. When molding and leaving the mold, extremely unstable shrinkage often occurs (the shrinkage rate of the rubber depends on the type of rubber). There are differences depending on the situation), it must take a period before it can become gentle and stable. Therefore, when designing a rubber product, both the formula and the mold must be carefully calculated and matched. If not, the size of the product may be unstable, resulting in a decrease in product quality.



Compared with ordinary rubber wheels, polyurethane wheels have higher mechanical strength, excellent wear resistance, outstanding compression resistance; wide hardness range, and still high elasticity under high hardness; high surface finish; superior processing performance; and The metal adhesion is also much higher than ordinary, which is more suitable for use under certain line speed and high pressure. Polyurethane rubber wheels have developed rapidly recently, and a large number of ordinary rubber rollers originally used have been replaced by new polyurethane rubber wheels.



Technical Parameters of Heavy Duty Trackless Platform Cart



Model

BWP-5T BWP-10T BWP-15T BWP-20T BWP-30T BWP-30T BWP-50T

Impacted rated load (T)

7.5 15 22.5 30 45 60

75

Structure of frame

Steel plates welded, beam structure

Thickness of steel plate

8 10 12 14 14 16

16

Cart weight(T)

4.3 5.3 6.6 7.9 8.8 10

10.5

Max wheel load(T)

2.8 4.6 4.3 5.6 7.7 10

12

Table size (mm)

3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×2300

Height of the whole cart(mm)

450 530 600 600 650 700

700

Ground Clearance (mm)

50 50 50 50 50 50

50

Wheels base (mm)

1500

1500 1700 1700 1700 1800

1800

Axles distance(mm)

2500 3100 3400 3900 4300 4800

5200

Turning radius(mm)

2501

3101 3401 3901 4301 4801

5201

Turning type

Turning while driving with no stop

Battery maintenance

Free of maintenance

Radar control

3-0.3m Automatic stop for obstacles

Cart color

Yellow, grey and warning sign

Warning system

Sound and light

Other functions

Turning light, night light and power display

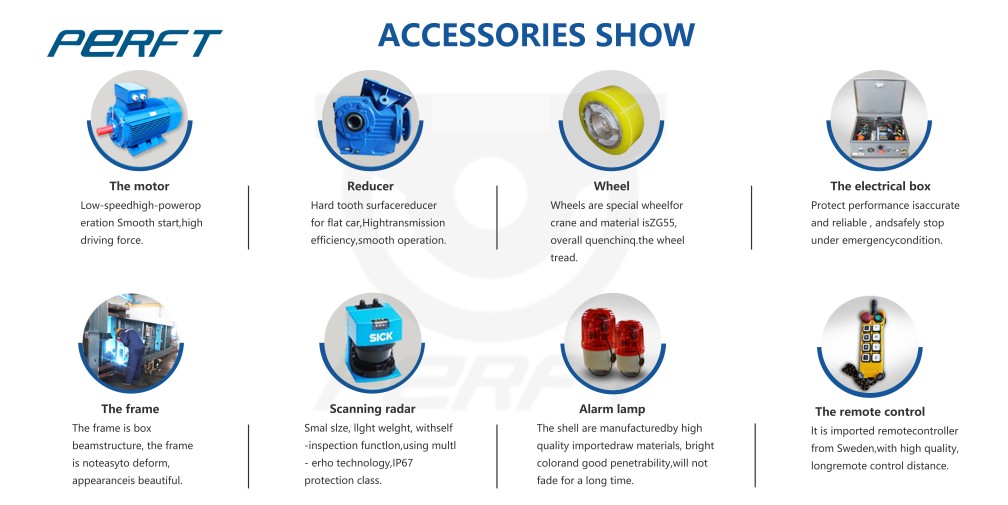

Basic Components of Heavy Duty Trackless Platform Cart





50 Tons Polyurethane Wheel Platform Cart Video
