Trackless Transfer Cart For Steel Industry
Date: 2024-05-20

Trackless transfer cart is a kind of material handling equipment that can travel freely on the level ground without laying tracks, it can go in any direction according to the operator’s needs. There is no preset path and no fixed destination, including forward, backward, left, right, S-shape forward, C-curve, or 360-degree in-situ rotating. Widely used in the steel industry, foundry industry, shipbuilding, construction industry, warehouses and workshops, chemical industry, railroads, etc.





Most Popular Trackless Transfer Cart



  • Hydraulic lifting trackless cart: It is designed for lifting and unloading heavy loads in industrial environments. It has a hydraulic lifting device powered by a sturdy hydraulic cylinder. The height of the lifting plate can be easily adjusted to meet specific processing or storage needs. It is a multifunctional machine.

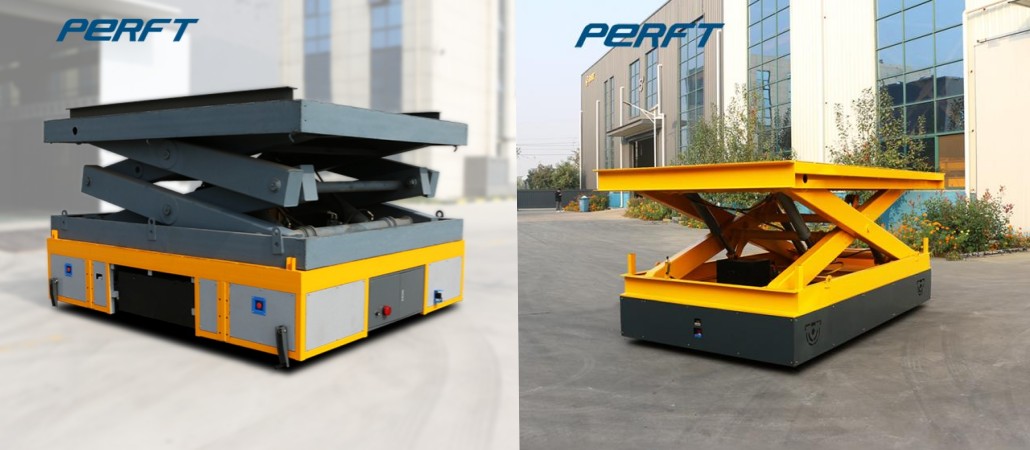

Hydraulic Lifting Trackless Cart



1. According to additional functions

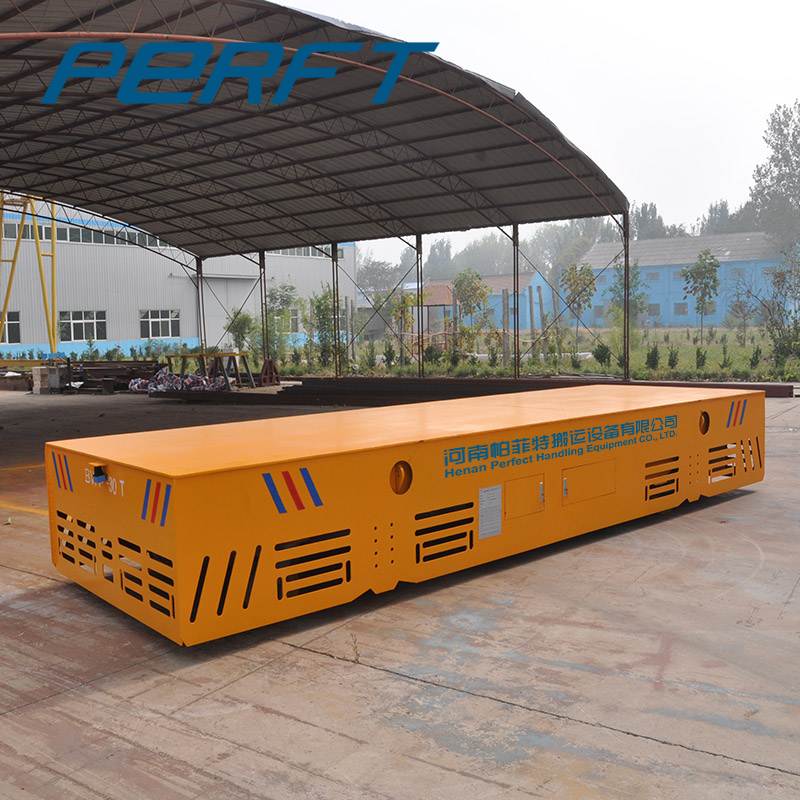

  • Polyurethane wheel steerable industrial cart: Wear-resistant, sturdy, maintenance-free; 360-degree rotation; large load carrying capacity, outstanding pressure resistance, good stability, not easy to deform. And it hardly produces noise in the process of running, the mute function is very powerful.
  • Electric trolley with rubber wheel: Easy to wear, needs regular maintenance; rotation will be limited, relatively low bearing capacity, low stability, easy to deform.
  • Explosion-proof transfer trolley: It can be applied to specific high temperatures and high pressure. Due to its high-temperature resistance and high safety, as well as the material and transmission system of the cart body, it is very different from ordinary transfer.
  • U-frame trackless transfer cart: By installing a U-frame device on the table, it can ensure that the rolls will not roll and fall during transportation, increasing stability and making transportation more efficient. They are widely used for handling rolls of steel coils, coils, iron bars, drums, etc.

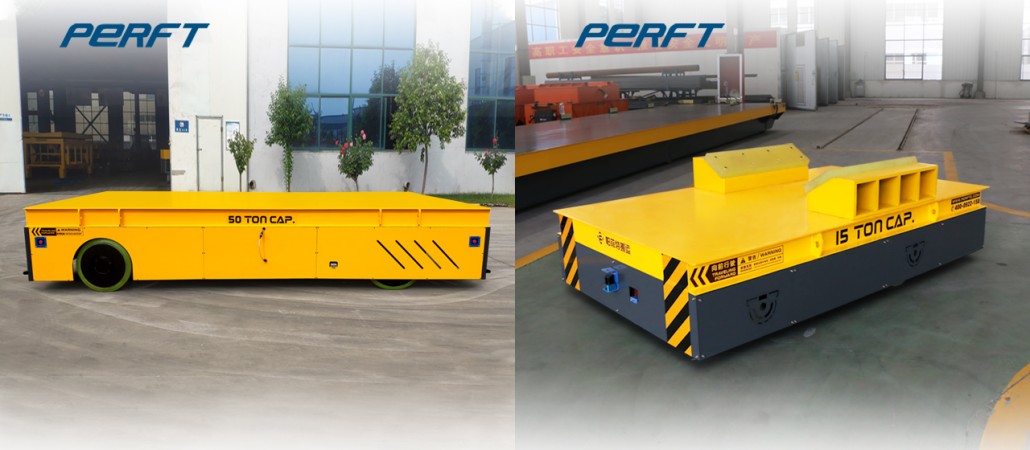

Omnidirectional mobile transfer trolley

2. According to different steering

  • In-situ rotating transfer trolley: Suitable for small tonnage material handling, with reasonable table layout, flexible operation, 360-degree rotating, suitable for passing through narrow space.
  • Hydraulic steering transfer cart: Not limited by tonnage, smooth running, high straightness, strong climbing ability, and strong carrying capacity.
  • Omnidirectional mobile transfer trolley: Transfer cart can travel in any direction, move forward, backward, left, and right, and can turn flexibly without restrictions.

3.  According to the different application environment

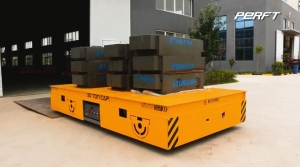

  • Ladle transfer cart: Electric transfer cart is very stable when starting and stopping. In order to prevent the radiation of high temperature, there is heat insulation material inside the car’s body, and it uses dual motors to work, if a motor breaks down, it will not affect its normal operation.

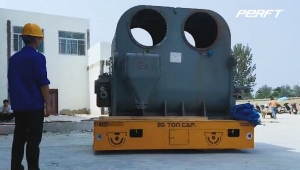

  • Die transfer trolley: The sturdy structure of heavy-duty cart can carry heavy molds and dies, suitable for automobile manufacturing, shipbuilding, railroads, airports, metal stamping, heavy machinery manufacturing, and other industries.

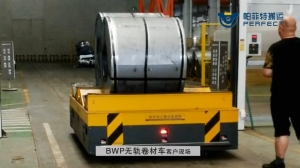

  • Coil transfer cart: The V-frame and U-frame design of the truck is used to move large steel coils in a warehouse or manufacturing plant. Table sizes and coil weights can be customized to meet unique material handling needs.

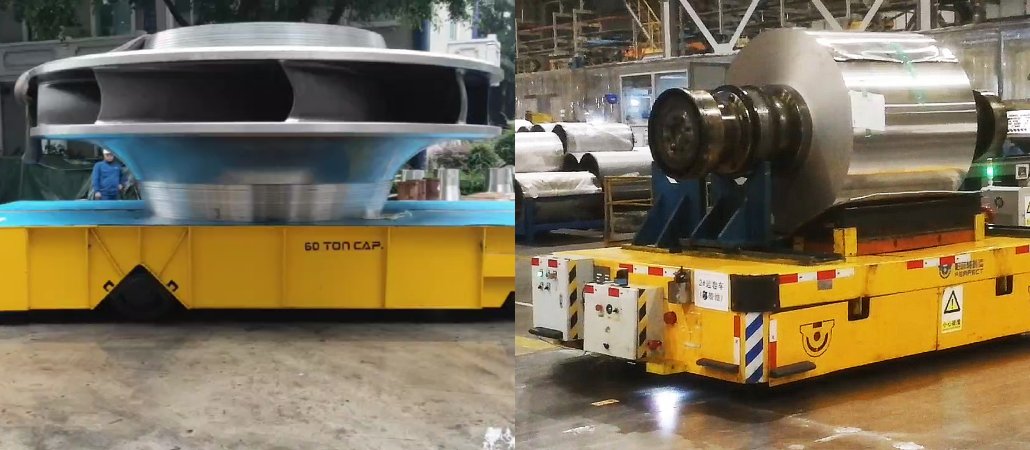

Die Transfer Trolley



Advantages Of Electric Powered Carts



  1. Cost reduction: There is no need to lay rails, which not only reduces the construction cost but also reduces the consumption of labor costs.
  2. Powerful load capacity: It is very easy to transport heavy duty, which can meet the needs of different industries to material handling.
  3. Flexible transportation: No fixed destination, no need to follow a set route, rational use of space, no need to use other devices for turning, free rotation, easy operation, convenient operation.
  4. Electric drive: Battery-powered, quiet and environmentally friendly, easy to maintain.
  5. Universal application: Transfer car can be driven indoors or outdoors, in high temperatures, waterproof, explosion-proof, and dust-proof.
  6. Easy to operate: Wireless remote control for work, no complex design, humanized transportation, improved labor efficiency.
  7. Safety guarantee: As there is no planned route, trackless cart will have an automatic alarm and anti-collision device during the running process, to ensure the safety of transportation throughout the whole process.



Trackless Transfer Cart 100 Ton Video





Parameter Sheet Of Material Movement Trolley



Model 5T 10T 15T 20T 30T 40T 50T
Impacted rated load (T) 7.5 15 22.5 30 45 60 75
Structure of frame Steel plates welded, beam structure
Thickness of steel plate 8 10 12 14 14 16 75
Cart weight(T) 4.3 5.3 6.6 7.9 8.8 10 10.5
Max wheel load(T) 2.8 4.6 4.3 5.6 7.7 10 12
Table size (mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
Height of the whole cart(mm) 450 530 600 600 650 700 700
Ground Clearance (mm) 50 50 50 50 50 50 50
Wheels base(mm) 1500 1500 1700 1700 1800 1800 1800
Axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
Turning type Turning while driving with no stop
Battery maintenance Free of maintenance
Radar control 3-0.3m Automatic stop for obstacles
Cart color Yellow, grey, and warning sign
Warning system Sound and light
Other function Turning light, night light, and power display

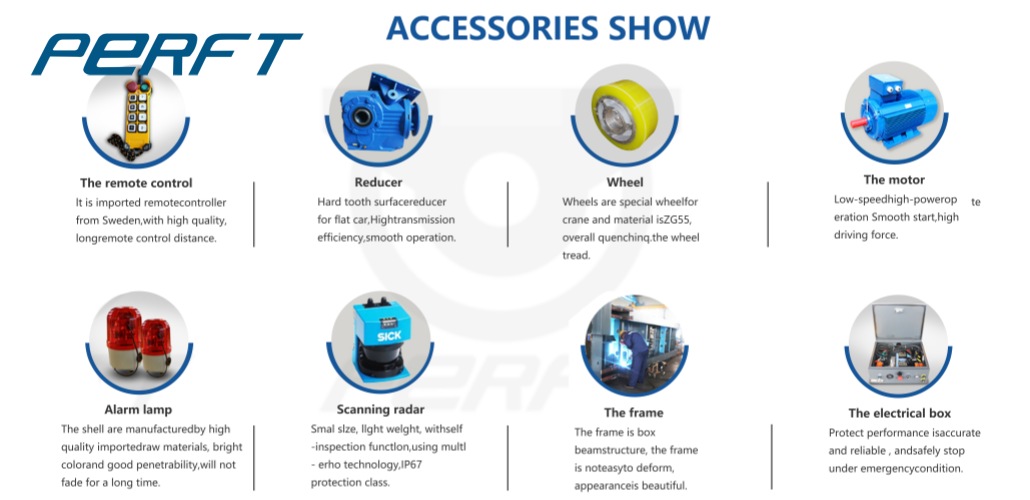

Core Components Of Automated Guided Vehicle



Electric Transfer Cart

  1. Charger: Full-automatic intelligent charging, automatic alarm after charging is completed.
  2. Reducer: Specially hardened gear reducer for transfer trolley, high transmission efficiency, smooth operation, low noise, easy maintenance, flexible shaft rotation.
  3. Motor: Low-speed and high-power operation, smooth start and large driving force, reducing the load voltage of the reducer, long life, small size, and lightweight.
  4. Scanning radar: Through infrared sensing road conditions, transfer cart automatically stops after sensing obstacles ahead
  5. Electrical box: The entire electrical control system is equipped with various protection devices, which are safe and reliable.
  6. Maintenance-free lead-acid battery: The electrode is composed of lead and lead oxide. Stable voltage, cheap price, simple maintenance, and good quality.
  7. Wireless remote control: Intelligent remote control, easy to operate
  8. Wheel: Flexible steering, strong load capacity, protect the ground
  9. Alarm light: Continuous sound and light alarm to remind the operator
  10. Frame structure: Steel plate welded beam structure, the frame is annealed, hard, and not easily deformed, with a safety factor of 150% or more.



Customization Options



For different customers’ product requirements, we offer customized services for the following functions

  1. Load capacity: 2t-500t
  2. Table Size
  3. Optional wheel types: Mecanum wheel, polyurethane solid wheel, rubber wheel
  4. Incidental tools: Rubber plate, aluminum pattern plate, V-frame/U-frame, roller, railing, damped buffer,  operating table.
  5. Service function: Weighing, ultra-low table, titling, climbing, ferry, hydraulic lift, robot arms, etc
  6. Power supply: Free of maintenance battery/lithium battery
  7. Safety features: Audible and visual alarm devices, crash cushioning system, radar scanning device, emergency stop button,



Our Services



Pre-sales:

  • 24-hour online response
  • Personalized and customized solutions
  • Flexible payment methods

After-sales:

  • Warranty service for 24 months
  • Engineers are available to service overseas machines
  • Provide 24-hour technical support
