Scissor Lifting Trackless Transfer Cart

Trackless transfer cart for vertical and horizontal movement. Our 2.5 ton scissor lifting transfer cart can meet the requirement of automatic unloading of steel beams by a hydraulic scissor lift system.

Model: BWP
Load capacity: 2.5 ton
Power supply: Battery power
Running speed: 1-20m/min
Warning system: Alarm Light+Emergency Stop Button+Laser Scanner
Customization function: Power display, hydraulic lifting system

Call Center: +8619337383023
Share us:
Description

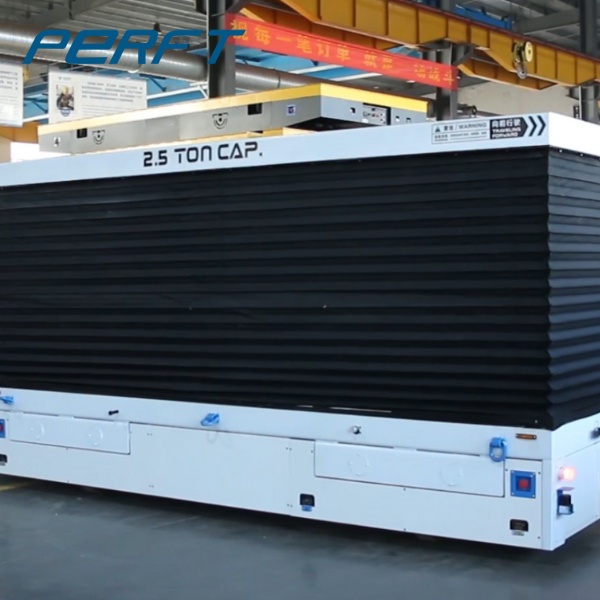

Hydraulic Scissor Lift Trackless Transfer Cart



Electric trackless transfer cart battery-powered is one material transfer cart without rails or fixed rails. It navigates autonomously using advanced control systems and sensors. They come with safety features such as collision avoidance systems and are used in industries to optimize operations and increase productivity.



Electric lifting table trackless transfer cart is a versatile machine designed for lifting and unloading heavy loads in industrial environments. it features a hydraulic lift device powered by a robust hydraulic cylinder, enabling easy adjustment of the lift plate height. Custom lifting tackless transfer cart operates directly on the ground, moving both vertically and horizontally with flexible turning capabilities. This adaptability makes it suitable for various assembly line layouts or storage configurations. lifting mechanism allows operators to adjust the lift plate height to meet specific processing or storage needs. A standout feature of our scissor lift trackless transfer cart is its smooth and safe transportation of heavy loads.



Safety is paramount in our hydraulic lift electric transfer cart design. Advanced safety features ensure a secure connection between lifting and transfer processes, minimizing risks for both personnel and goods. Our products undergo rigorous quality control measures to ensure maximum safety and reliability.



Types of Lifting Carts Systems from PERFECT



  1. Scissor Lift (2/4 hydraulic cylinder)
  2. Column Lift (2/4 hydraulic cylinder)
  3. Tilting



Please send us your specifications for your handling solution.



Main Feature of Trackless Transfer Cart



  • Load capacity from 2t up to 500t
  • Table size can be customized
  • Power supply: Battery/Cable reel/Cable drum/Busbar/Conductor rail/Diesel
  • Low battery alarm and smart battery charger
  • 0ptional working method(rails or trackless)
  • Box girder structure cart frame(nondeformable, Unique Structure)
  • Additional functions: Scissor lifting, robotic arm, climbing, v shape, u shape, anti-explosion, heat-proof function, tilting, roller, weighing, radar scanning, etc.
  • Safety features: LED flashing lights, Emergency stop button, alarm light, anti-collision system, guardrails, etc
  • Control system: button control and wireless remote control, or PLC



Client Case

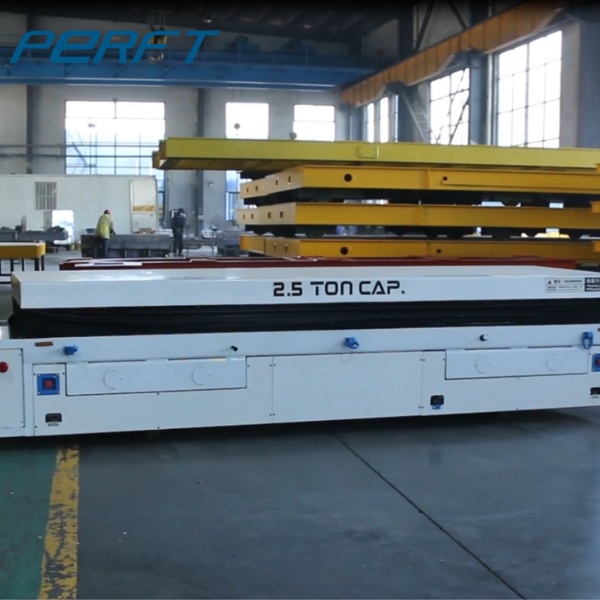

2.5 tons scissor lift trackless transfer cart has been delivered to Hong Kong. China. Trackless transfer cart is used to transport heavy components in steel plant, Since there are many stations at the same site and the space is small, the cost of using multiple rail transfer carts at different stations is high, so we designed a trackless transfer cart with scissor lift table.

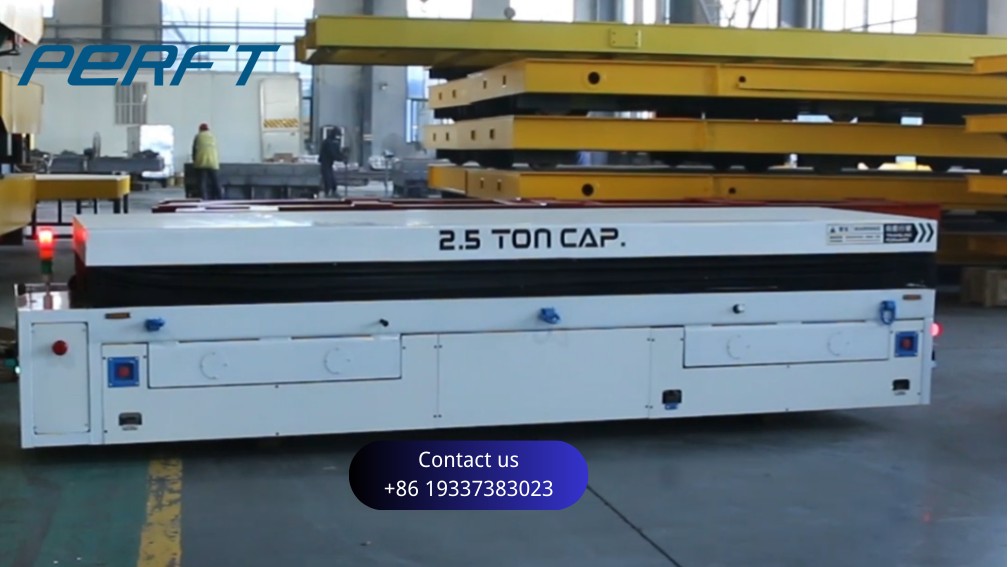

Case client for 2.5 tons scissor lifting trackless transfer cart
Case client for 2.5 tons scissor lifting trackless transfer cart

Scissor Lift Trackless Transfer Cart Test Video





Technical Parameters of Trackless Transfer Cart

Model BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-63T BWP-150T
Rated load (T) 2 10 20 30 50 63 150
length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Ground Clearance (mm) 50 50 50 50 50 75 75
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2



Application Of Lifting Table Trackless Transfer Cart



  • Manufacturing
  • Warehousing
  • Assembly lines
  • Steel mills
  • Foundry
  • Mining industry
  • Automotive manufacturing

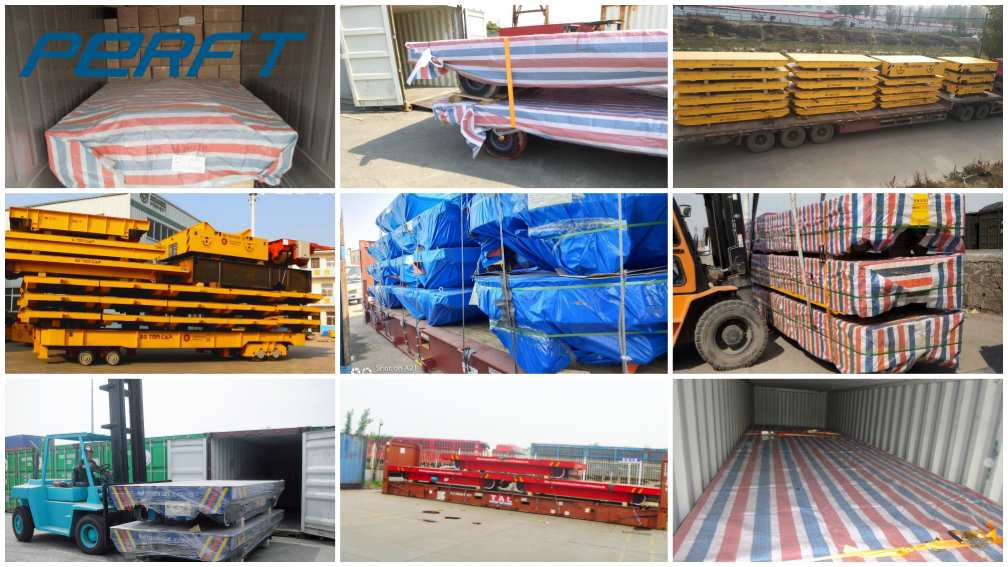

Delivery

For trackless transfer cart from PERFECT, generally need 30-40 days working time, 40-50 days as usual delivery, 60 days for special design delivery. Will be packed with tarpaulin and parts will be shipped in high-quality wooden boxes. For specific specifications, please contact us.

Delivery for transfer carts
Delivery for transfer carts

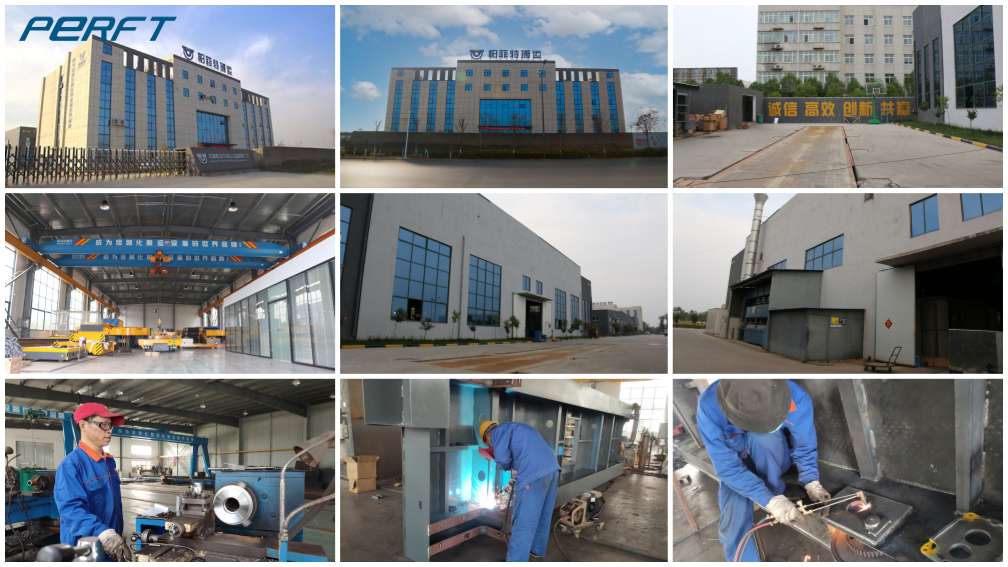

Our Factory

Perfect has 21 years of production and export experience, with an annual output of 1,800 units. There are now 10 major product series, such as: AGV, RGV, rail transfer cart, trackless transfer cart, hydraulic lifting transfer cart, rail turntable, industrial trailer, track inspection vehicle, truck tractor, coil transfer cart, mold transfer cart, ladle transfer cart, etc. We have a professional and quick-response sales team and a lifelong after-sales team for you, your needs are our pursuit, contact us today for your material handling solution.

Transfer Cart Manufacturer
Transfer Cart Manufacturer



Our Visitors

Visitors to our factory
Visitors to our factory
