Rail Guide Vehicle

Rail Guided Vehicle (RGV) system can be an excellent replacement for long conveyor lines in a warehouse environment. Rail Guide vehicles using smart high-speed rails that can accommodate a variety of load handling. As an intelligent handling and transport equipment, it can Save time, increase productivity and prevent accidents.

Model: RGV
Brand: Perfect
Load capacity: 5t-500t Optional
Dimension: Can be customized on client’s need
Power Supply: Battery power, cable power, busbar power, low voltage rail power optional
Running speed:1-20m/min
Operation mode: 24 hours operation

Call Center: +8619337383023
Share us:
Description

Rail Guide Vehicle System



RGV is one type of AGV by uses rail as a guidance path, also called rail shuttle trolley (cross belt sorting system). Through precise positioning control system, It moves on tracks fixed to the floor. It is designed to accommodate various types of load handling equipment, the price is lower than the AGV. Rail-guided vehicles can be used in high-frequency conditions and high-temperature environments, and are suitable for medium and long-distance material transportation. Increased safety, as forklifts do not need to enter the tunnel. Particularly for workshop transport. At Perfect, the rail guide vehicle system can be customized to meet your organization’s specific requirements. RGV is capable of carrying a variety of loads, and its special functions can be added, such as connecting with a robotic arm, vertical and horizontal translation, automatic flip, and installing V-frame on the table to pick up and deliver heavy loads of coiled materials.



In addition to connecting different warehouse locations, rail guide vehicle system can act as an efficient sorter, which allows units to be sorted to various destinations based on requirements. This feature makes the sorting process more organized, faster, and significantly more efficient.



Main Parts of RGV System



  • Rail guided vehicles
  • Rail/ Track system
  • Precise positioning control system



Advantages of Rail Guided Vehicle Perfect



  1. Unlimited for working time and running distance of RGV.
  2. RGV can be customized from 5 tons up to 500 tons.
  3. Low noise level transportation
  4. High reliability & easy maintenance for modular components.
  5. 5. Incidental toolings added optional, such as V frame, U frame, roller, hydraulic lifting, rail turntable and railing.
  6. 6. Can run on rail switching devices, vertical rails, rotating tables, “L” rails, “S” rails, turntable, arc-shaped rails, etc.
  7. Perfect has offices in some Southeast Asian countries to facilitate on-site solutions to your technical problems. NC blanking. Assembly welding, welding, primer spraying, grinding and de-rusting, assembling the motor, assembling the wheel.



Parameters of Rail Guided Vehicle Perfect



Capacity load 5t-500t Can be Customized
Dimensions Can be customized
Carrier type Platform type
Drive form Steering wheel drive
Guide control Rail guidance
Running speed 1-30m/min
Working direction Forward/Backward/Rail turntable/Lifting
Communication method Industry WIFI
Power supply Lead-acid batteries/ lithium battery/ Cable power/Rail power
Charging Automatic/Manual
Operation mode 24 hours operation
Positioning accuracy ±10mm
Stop accuracy ±10mm
Safe induction range ≤3m adjustable
Grade ability ≤3%
Warning type Voice alert+Light alarm

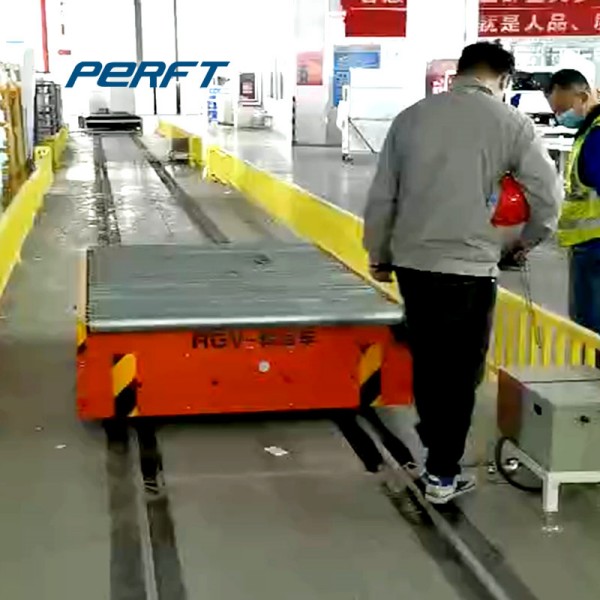

Client Case for Rail Guided Vehicle 2 Ton Video
